How To Connect P500 Pedals To PC For Sim Racing Precision

Connecting P500 pedals to a PC requires a direct USB interface connection to ensure low-latency data transmission, bypassing secondary wheel base ports for optimal signal integrity. By utilizing the manufacturer-provided configuration software and calibrating the load cell or potentiometer axes within the Windows Game Controllers interface, users achieve high-fidelity throttle, brake, and clutch modulation essential for competitive sim racing.

Prerequisites and Hardware Integration Requirements

Successful integration of P500 series pedals into a PC-based simulation environment necessitates a structured approach to hardware connectivity and driver management. These pedals utilize high-resolution sensors that demand stable power delivery and consistent polling rates, typically managed through a dedicated USB controller board integrated into the pedal housing.

• Essential Equipment: High-quality USB 2.0 or 3.0 Type-A to Type-B/C cable (ensure shielding to prevent EMI/RFI interference), the P500 pedal set, and an available powered USB port on the PC motherboard or a high-bandwidth powered USB hub.
• Mandatory Prerequisites: Installation of the manufacturer-specific P500 driver suite, administrative access to the Windows operating system, and the latest version of the target simulation software (e.g., iRacing, Assetto Corsa Competizione).
• Benchmarks and Duration: Expect a physical installation time of approximately 10 minutes, with an additional 15 minutes dedicated to software calibration and deadzone fine-tuning.

Step-by-Step Hardware and Software Integration Workflow

Step 1: Physical Interface Connection

Connect the USB cable to the port located on the P500 control box or the primary pedal base unit. Insert the opposite end of the cable directly into a rear-panel USB port on your PC motherboard. Avoid using front-panel case ports, as these often lack the consistent power delivery and grounding required for sensitive load-cell sensors.

Pro-Tip: If the pedals are not immediately detected, verify that the cable is firmly seated and that you are not daisy-chaining through a passive USB hub, which can lead to signal dropouts during heavy braking inputs.

Step 2: Driver Initialization and Firmware Verification

Once connected, Windows will attempt to recognize the device as a Game Controller. Launch your specific P500 configuration software to confirm that the hardware is recognized. Navigate to the firmware update tab within the utility. If an update is available, ensure the system power is stable and perform the flash process without disconnecting the USB cable to prevent permanent controller bricking.

Step 3: Windows Game Controller Calibration

Open the Windows Run dialog, type "joy.cpl" and press Enter to open the Game Controllers window. Select your P500 pedal set from the list and click Properties. Navigate to the Settings tab to perform a manual axis calibration. Press the brake, throttle, and clutch pedals through their full range of motion. This process maps the physical travel of your P500 sensors to the software's digital range.

Warning: Do not skip the software calibration step. Failure to calibrate results in "clipped" inputs where the pedal reaches 100% output before the physical mechanical stop, causing inconsistent race performance.

Step 4: Sim Racing Software Mapping

Launch your simulation title and enter the input settings menu. Assign the pedals to their respective functions. For P500 pedals equipped with load cells, ensure you set the brake sensitivity threshold to match your preferred physical pressure. Many simulators allow for a "linear" or "non-linear" input curve; select linear for the most predictable and realistic behavior.

Technical Specifications and Calibration Thresholds

The following table outlines the standard operating parameters for P500 pedal connectivity and internal sensor performance, providing a baseline for optimal mechanical interaction.

Troubleshooting Common Connectivity and Signal Failures

• Root Cause: The pedals intermittently disconnect during high-intensity braking.


  • Actionable Fix: This is often caused by an electrostatic discharge or a loose USB port connection. Ensure the USB cable is secured with a cable tie to reduce strain and verify that your rig is properly grounded to mitigate static buildup.
• Root Cause: The brake pedal registers an input even when not pressed (ghosting).


  • Actionable Fix: Increase the software-side "Minimum Deadzone" by 2-5% within your simulation settings to account for mechanical settling or sensor drift.
• Root Cause: P500 drivers fail to install or recognize the device.


  • Actionable Fix: Use a tool like USBDeview to uninstall all hidden or "ghost" instances of the pedal controller, restart the machine, and re-install the manufacturer drivers as an administrator.

Frequently Asked Questions

Do I need to connect the P500 pedals to the wheel base or the PC directly?

For the best performance and highest polling rate, you must connect the P500 pedals directly to your PC via USB. While some wheel bases have peripheral ports, these often throttle the signal data rate compared to a direct motherboard USB connection.

How do I know if my P500 pedals are calibrated correctly?

Verify calibration by opening the Windows Game Controllers utility (joy.cpl). The progress bars for each pedal should move smoothly from 0% to 100% in perfect synchronization with your physical foot input without flickering or stuttering.

Can I change the brake resistance of my P500 pedals?

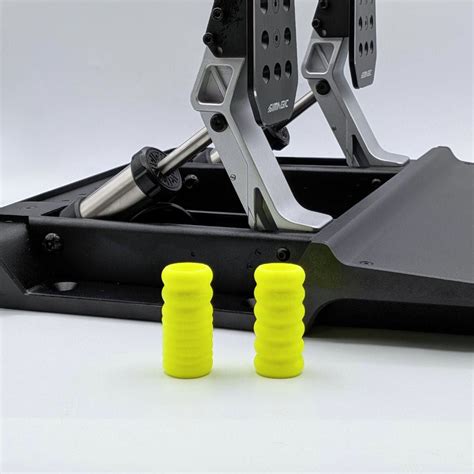

Yes, most P500 configurations allow for physical adjustments to the elastomer or spring stack within the brake cylinder. After making any physical changes to the pedal stiffness, you must re-calibrate the axes in the Windows Game Controller menu to update the force threshold.

Why does my P500 pedal input seem jittery in-game?

Jitter is usually caused by electromagnetic interference or a faulty USB cable. Ensure your pedal cables are routed away from high-voltage power cables or motor-driven components like direct-drive wheel bases to maintain signal purity.

Enhance Your Racing Setup Today

Optimizing your P500 pedal connectivity is the most significant step toward achieving consistent lap times and superior braking precision. Implement these configurations now to eliminate input lag and gain a decisive edge on the track.
