How To Calibrate An Air Pressure Gauge: A Professional Technical Guide

Calibrating an air pressure gauge requires a high-precision reference standard, typically a deadweight tester or a certified master gauge, to ensure the unit accurately reflects pneumatic force within defined tolerance bands. The process involves identifying zero-point drift, applying incremental pressure checkpoints across the device's full-scale range, and performing mechanical adjustments to align the pointer with NIST-traceable benchmarks.

Pre-Procedure Calibration Requirements and Tooling

Successful calibration depends on the precision of the reference instrument. Before initiating the procedure, ensure your workspace is free of contaminants that could clog internal sensing elements like Bourdon tubes or diaphragms. The ambient temperature should remain stable, ideally between 68 and 72 degrees Fahrenheit, to prevent thermal expansion of the gauge components from skewing readings.

• Essential Equipment: A primary standard (deadweight tester) or a master gauge with an accuracy rating at least four times greater than the gauge being tested.
• Auxiliary Tools: Calibration manifold, high-pressure fittings, non-residue thread sealant (Teflon tape), and a set of precision screwdrivers for internal dial adjustments.
• Mandatory Prerequisites: Verification that the gauge is free of mechanical damage, such as a bent pointer or a cracked lens. Ensure you have the manufacturer’s data sheet detailing the specific allowable error margins, typically expressed as a percentage of the full-scale range.
• Estimated Duration: 45 to 60 minutes depending on the number of test points and the complexity of the internal adjustment mechanism.

Standardized Calibration Methodology

Calibration is not a one-time adjustment but a series of systematic tests designed to map the linearity of the gauge response. Always calibrate by increasing pressure first, followed by a decreasing pressure sequence to identify potential mechanical hysteresis.

Step 1: Establishing the Zero Point

Before applying any pressure, verify the needle rests exactly at the zero mark. If the pointer rests off-zero, use the zero-adjustment screw located on the front of the dial or the adjustment mechanism on the pointer hub. If the gauge features a removable faceplate, use a pointer puller to safely reset the needle position.

Warning: Never force the pointer past the zero stop pin, as this can permanently deform the Bourdon tube or weaken the hairspring mechanism, rendering the gauge permanently inaccurate.

Step 2: Selecting Calibration Test Points

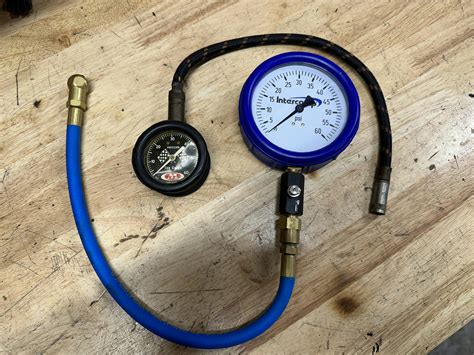

A standard calibration protocol requires checking at least five points across the scale, typically at 0%, 25%, 50%, 75%, and 100% of the maximum rated pressure. Connect the gauge and the reference standard to the calibration manifold using an air-tight seal. Use high-purity compressed air or nitrogen as the medium to prevent moisture buildup inside the gauge internals.

Step 3: Executing the Pressure Cycle

Increase pressure incrementally to each test point. Allow the reading to stabilize for 10 to 15 seconds at every interval before recording the value. After reaching 100% of the capacity, release the pressure in similar 25% increments back to zero. Note any discrepancies between the reference gauge and the unit under test.

Pro-Tip: If you detect a linear error where the gauge is consistently high or low across all points, the issue usually involves the linkage ratio, which can be adjusted via the movement’s span screw.

Step 4: Final Adjustment and Sealing

If the deviation exceeds the manufacturer’s tolerance, adjust the internal linkage mechanism. Small tweaks to the span arm will change the sensitivity of the movement. After each mechanical adjustment, repeat the full calibration cycle to ensure that correcting one error has not introduced a new one at a different pressure point. Once the device falls within the tolerance band, replace the lens, clean the exterior, and label the unit with the date of calibration and the technician’s identification.

Calibration Parameters and Accuracy Benchmarks

The following table summarizes the typical industry standards for industrial pressure gauges. Accuracy is generally expressed as a percentage of the full-scale (FS) range.

Common Field Failures and Remediation Protocols

Even high-quality instruments fail due to environmental factors, vibration, or metal fatigue. Understanding these failure modes ensures you do not waste time attempting to calibrate a gauge that is structurally compromised.

• Pointer Sticking or Erratic Movement: This is often caused by debris inside the movement or a damaged gear tooth. Root cause is typically internal contamination. Actionable fix: Flush the movement with a high-grade contact cleaner, allow it to dry, and inspect the sector gear for alignment or missing teeth. If the gear is damaged, the movement must be replaced.
• Hysteresis (Discrepancy between Upscale and Downscale Readings): Root cause is usually metal fatigue in the Bourdon tube or loose linkages in the movement. Actionable fix: Check the link pins for wear. If the pins are loose, the assembly lacks the rigidity required for accurate measurement and should be taken out of service.
• Failure to Return to Zero: Root cause is often a weakened or broken hairspring. The hairspring is designed to keep the gear train under constant tension. Actionable fix: Carefully inspect the hairspring for tangles or deformation. If the spring cannot exert enough force to return the needle to zero, the gauge is at the end of its service life and should be replaced.

Frequently Asked Questions

What happens if the gauge is calibrated outside the manufacturer's tolerance?

If a gauge fails the calibration check, it must be either adjusted mechanically or decommissioned. Using an out-of-tolerance gauge in a high-pressure environment poses a significant safety risk, as it may provide false confidence in pressure limits.

Can I calibrate a liquid-filled gauge the same way as a dry gauge?

Yes, the procedure is identical, but liquid-filled gauges require careful handling to prevent leaks during fitting changes. Ensure the gauge is oriented vertically during the entire process to prevent the damping fluid from interfering with the internal sensor readings.

How often should I perform professional recalibration?

Industry standards typically suggest annual recalibration for standard operations. However, if the gauge is subjected to extreme vibration, thermal cycling, or pressure spikes, you should shift to a semi-annual or quarterly calibration schedule.

Does temperature affect the accuracy of my calibration?

Yes, pressure gauge calibration is temperature-sensitive. The internal sensing element will expand or contract based on ambient heat, which directly influences the volume and elasticity of the metal. Always perform calibration in a climate-controlled environment to ensure maximum measurement integrity.
