How To Attach Bike Pedals: A Complete Step-by-Step Installation Guide

Attaching bike pedals correctly requires understanding that the left and right pedals have opposing threads, which prevents them from loosening while riding. By applying bicycle-specific grease, identifying the drive and non-drive sides, and tightening them to the correct torque specification, you can ensure a safe and squeak-free drivetrain.

Pre-Operation & Equipment Checklist

Installing bicycle pedals is a straightforward mechanical procedure, but it demands precision to avoid cross-threading and damaging your crank arms. Cranks are typically made of softer aluminum alloys, whereas pedal spindles are made of hardened steel; forcing a mismatched or misaligned pedal will permanently ruin the crank threads.

• Essential Gear, Tools, and Materials:

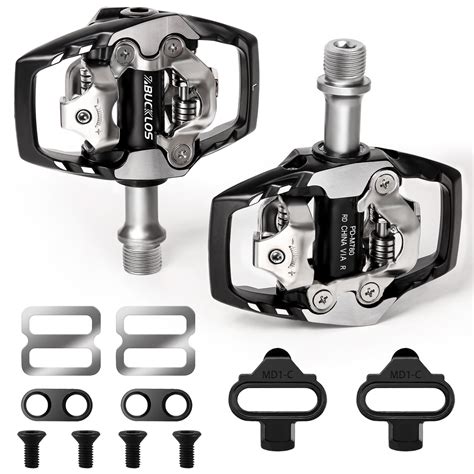

  • Left and right bicycle pedals (inspect for L and R stampings)
  • 15mm open-end pedal wrench or an 8mm/6mm hex (allen) wrench (depending on the pedal spindle design)
  • Bicycle-specific waterproof grease or anti-seize compound
  • Clean shop rag or paper towels
• Mandatory Prerequisite Knowledge and Standards:


  • Understanding the difference between standard right-hand threads and reverse left-hand threads.
  • Standard pedal thread dimensions (9/16-inch by 20 TPI for most adult bikes; 1/2-inch for older or one-piece BMX cranks).
  • Standard torque specification range for standard pedal spindles (typically 30 to 40 Newton-meters or 22 to 30 foot-pounds).
• Estimated Budget and Duration Benchmarks:


  • Duration: 10 to 15 minutes.
  • Cost: Free if you already own a 15mm wrench and grease; $15 to $30 if purchasing a dedicated long-handled pedal wrench.

Step-by-Step Pedal Installation Workflow

Step 1: Identify the Left and Right Pedals

Before touching any tools, you must correctly identify which pedal belongs on which side of the bicycle. Stand behind the bike as if you were about to sit on the saddle. The right side (drive side) features the chain, chainrings, and derailleur. The left side (non-drive side) is completely bare of drivetrain components. Look closely at the threaded ends of the pedal spindles (the metal shafts), where you will find a stamped letter:

• R stands for the Right (drive) side.
• L stands for the Left (non-drive) side.

Warning: Installing a left pedal into the right crank arm—or vice versa—will damage the threads on both the pedal and the crank arm within the first two turns. Never force a pedal. If it does not thread smoothly by hand, stop immediately and check the orientation.

Step 2: Clean and Grease the Crank Threads

Over time, sweat, water, and road grime collect inside crank arm threads, causing galvanic corrosion that fuses the pedal spindle to the crank.

1. Use a clean shop rag to wipe out the internal threads of both the left and right crank arms until they are entirely free of old grease, dirt, and metal shavings.
2. Wipe down the threaded shafts of the pedals.
3. Apply a generous layer of waterproof bicycle grease or anti-seize compound around the threads of both pedal spindles. This lubrication ensures smooth installation and prevents future creaking and corrosion.

Step 3: Thread the Right Pedal into the Drive Side

Take the pedal marked with the letter R. Insert the threaded spindle into the right crank arm (the side with the chain).

1. Turn the pedal spindle clockwise (to the right) by hand to start threading it into the crank arm.
2. As you look at the crank arm from the side of the bike, rotating the pedal toward the front wheel tightens it.
3. Ensure the threads catch smoothly. If you feel resistance or see the spindle entering at an angle, back it out completely and try again.

Step 4: Thread the Left Pedal into the Non-Drive Side

Take the pedal marked with the letter L. Insert the spindle into the left crank arm.

1. The left pedal features a reverse thread (left-hand thread). To tighten it, you must turn the spindle counter-clockwise (to the left).
2. As you look at the left crank arm from the side of the bike, rotating the pedal toward the front wheel still tightens it, but because you are working on the opposite side of the frame, the physical hand motion is reversed.
3. Turn the spindle by hand until the threads engage smoothly and the pedal screws in flush against the crank face.

Step 5: Torque the Pedals to Specification

Once both pedals are hand-threaded as far as they will go, secure them using your tools to ensure they do not back out under pedaling loads.

1. Place a 15mm pedal wrench onto the wrench flats located between the pedal platform and the crank arm, or insert an allen wrench into the hex socket on the back side of the crank arm.
2. Tighten the right pedal by turning the wrench toward the front wheel (clockwise).
3. Tighten the left pedal by turning the wrench toward the front wheel (counter-clockwise).
4. Apply firm, steady pressure. A standard pedal should be torqued to approximately 35 Nm. If you do not have a torque wrench, tighten it firmly so that it will not loosen while riding, but avoid over-tightening to the point where you cannot remove it later. Wipe away any excess grease squeezed out during tightening.

Technical Specifications and Hardware Comparison

Common Installation Failures and Field Fixes

Even experienced mechanics occasionally encounter issues during pedal swaps. Recognizing these failure points prevents costly damage to your drivetrain.

• Cross-Threading the Crank Arm:


  • Root Cause: Attempting to force a pedal into a crank arm at an angle, or mixing up the left and right pedals.
  • Actionable Fix: Immediately unscrew the pedal. If the first thread on the aluminum crank is slightly deformed, a professional bike mechanic can often chase the threads using a specialized 9/16-inch tap tool. If the threads are severely stripped, the crank arm must be replaced.
• Persistent Creaking While Pedaling:


  • Root Cause: Installing pedals onto dry threads without grease, or failing to tighten the spindle fully against the crank face.
  • Actionable Fix: Remove both pedals, thoroughly clean the threads with a degreaser, reapply fresh waterproof bicycle grease, and reinstall them to the correct torque specification.
• Pedals Seized and Impossible to Remove:


  • Root Cause: Lack of grease combined with years of oxidation between the steel spindle and aluminum crank arm.
  • Actionable Fix: Apply penetrating fluid (such as liquid wrench) to the back of the crank threads and let it sit for 30 minutes. Use a long-handled 15mm pedal wrench for extra leverage. If necessary, take the bike to a local bike shop for specialized leverage tools.

Frequently Asked Questions

Why do bike pedals have left- and right-specific threads?

Pedal spindles experience a biomechanical phenomenon called precession while you ride, which causes the bearings and spindle to naturally want to unscrew themselves against the rotation of the cranks. By engineering the left pedal with a reverse thread, the pedaling force actually tightens the pedal into the crank arm, preventing it from falling off during use.

Can I install bike pedals without using grease?

While you can physically screw pedals into a crank without grease, it is strongly discouraged. Unlubricated metal-on-metal contact leads to friction, irritating creaking noises while riding, and severe galvanic corrosion that can permanently fuse the pedal to the crank arm within a single season.

What is the difference between a pedal wrench and a standard wrench?

A standard open-end wrench is often too thick to slide into the narrow space between the pedal body and the crank arm. A dedicated pedal wrench features an ultra-thin profile head and an extra-long handle, which provides the necessary leverage to securely tighten or break loose stubborn pedal spindles.

How tight should my bike pedals be?

Pedals should be tightened to roughly 30 to 40 Newton-meters of torque. If you are using a standard pedal wrench without a torque gauge, tighten it firmly with your body weight or palm force, ensuring it is secure enough that it will not wiggle loose under heavy sprinting loads.

Can I put road bike pedals on a mountain bike?

Yes, as long as both the pedals and the crank arms use the standard 9/16-inch threading, you can interchange road and mountain bike pedals freely. However, keep in mind that you must use matching cycling shoes and cleats that correspond to the specific pedal retention system (such as SPD, SPD-SL, or Crankbrothers).

Upgrade Your Drivetrain with Confidence Today

Equipping your bicycle with fresh pedals transforms your power transfer and overall ride quality when done with precision and care. Grab your tools, apply that essential layer of grease, and enjoy a smooth, efficient pedal stroke on your next ride.
